TEL Series

Standard Lengths:16’ – 24’Floor Materials:3/16”, 1/4”, 3/8” AR 400
Inside Widths:90"Side Materials:3/16”, 1/4”, 3/8” AR 400
Outside Widths:96"Bulkhead Materials:3/16”, 1/4”, 3/8” AR 400
Standard Side Heights:50” – 60”Tailgate Materials:3/16”, 1/4”, 3/8” AR 400, 1/8” AR 450
Standard Tailgate Heights:56” – 66”
Special Features:
  • Elliptical body designed to allow material to easily and quickly flow into paving machines or stockpiles
  • Used primarily in paving and other material hauling applications.
  • Unlike traditional flat side dump bodies that discharge loads in larger areas, the elliptical body is uniquely designed to keep materials in a smaller, targeted area

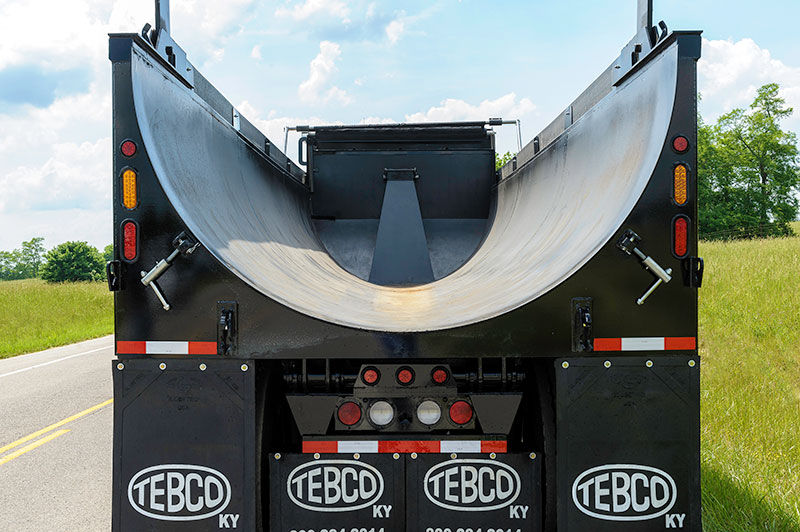

  • Inside radius provides a slopped surface allowing heavy materials to slide down the body rather than striking the floor directly thereby increasing longevity and appearance
  • Durable design with no flat sides makes it an appropriate design for the roughest of applications. Radius sides deflect and center loads.
  • Light weight, yet durable construction of single sheet of material.

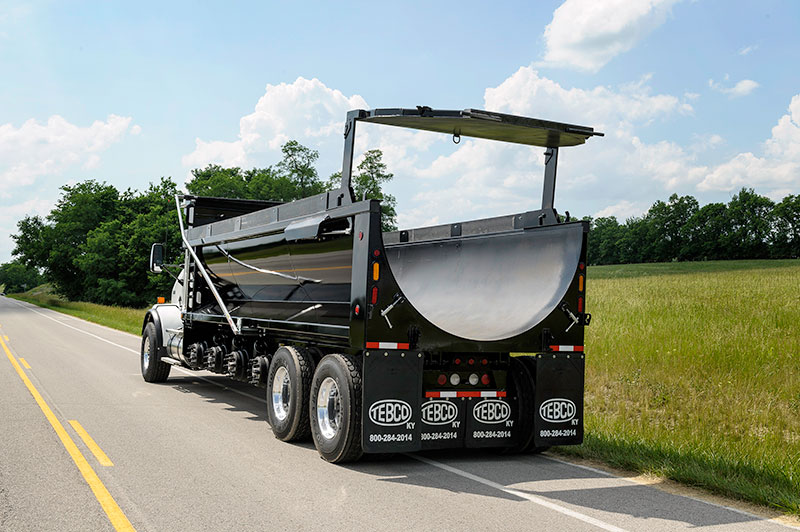

  • Addition of air-operated hi-lift tailgate great expands the possibilities of this already versatile body.
